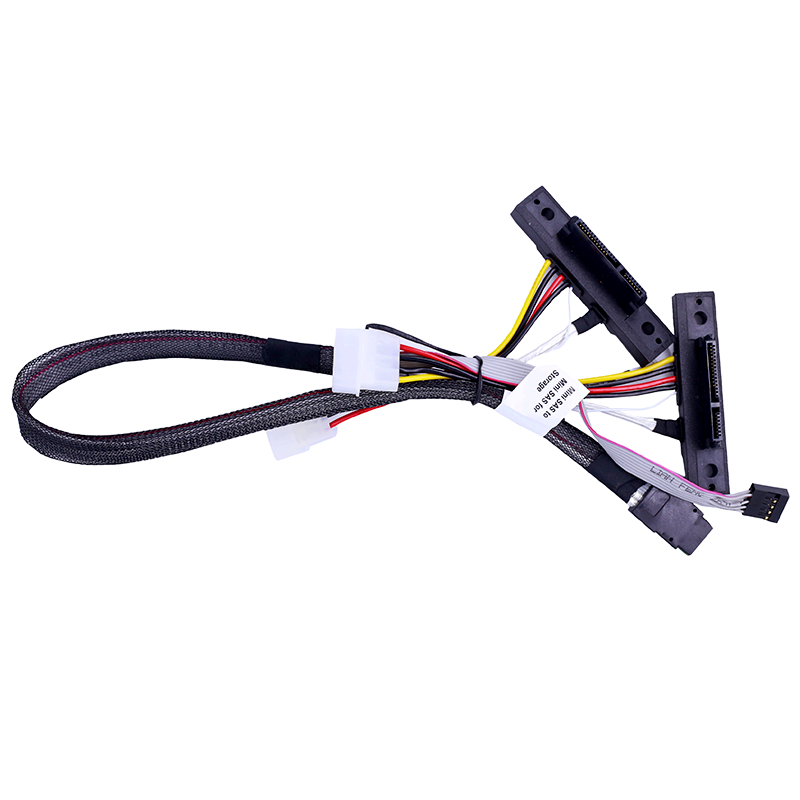

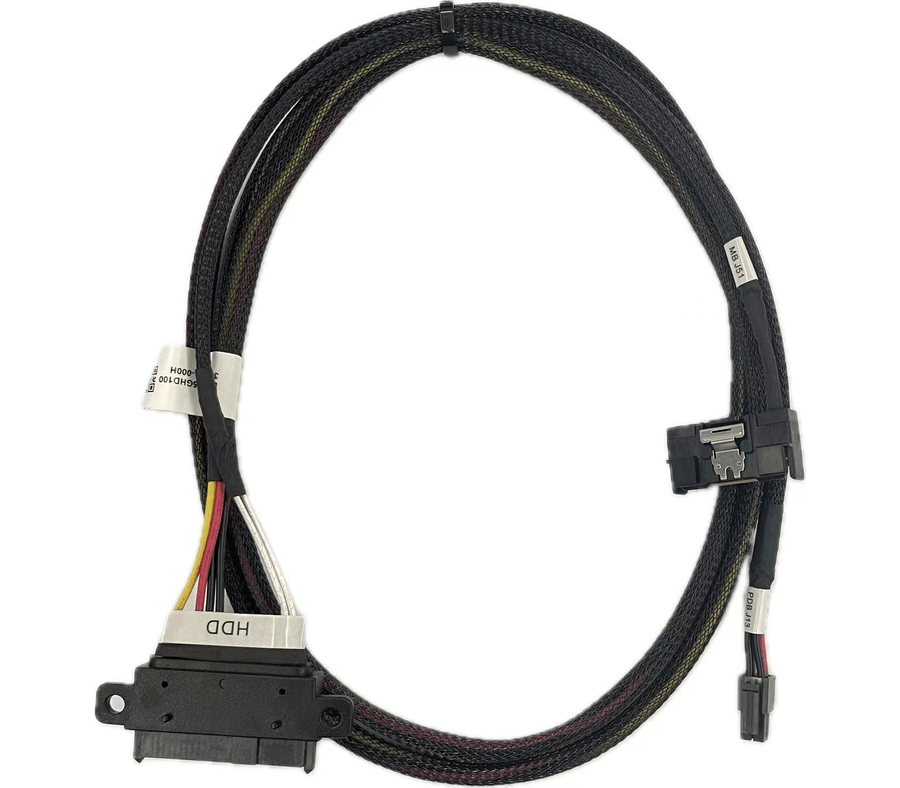

U.2 PCIe SATA / SATA 连接线束

U.2 PCIe SATA / SATA 连接线束
Description

68pin (P1-P15, S1-S14, S15-S28, E1-E25)

Specification
  • Standard SFF-8639 ; SAS 3.0 ; PCIe Gen 3
  • Backplane fixed receptacle
  • Supports impedance 100Ω & Application 30AWG cable
  • Up to 12Gbps (SAS 3.0)
  • Power section current 1.5A per pin
  • Durability 500 cycles (backplane)
  • Flammability connector UL94V-0 & cable VW-1
Features
  • Server & Storage device
  • SATA, SAS, PCIe based devices
  • RoHS compliant & Halogen-free is available on request
